Vayu 7.0 — Complete Product Guide

TABLE OF CONTENTS

• 1. Introduction
• 2. Package Contents / Accessories
• 3. Physical Overview (Layout)
• 4. 4 Built-in Inflation Modes
• 5. Important Notes
• 6. Charging the Inflator
• 7. How to Use — Step by Step
• 8. Pressure Pre-Set
• 9. Battery Display
• 10. Warranty Note
• 11. Still Facing Issues?

1. Introduction

Thank you for choosing Portronics. Vayu 7.0 is a rechargeable, padlock-style tyre inflator with 4 built-in inflation modes, a digital pressure display, and USB / Type-C charging — designed for sedan car tyres, motorcycles, bicycles, and balls.

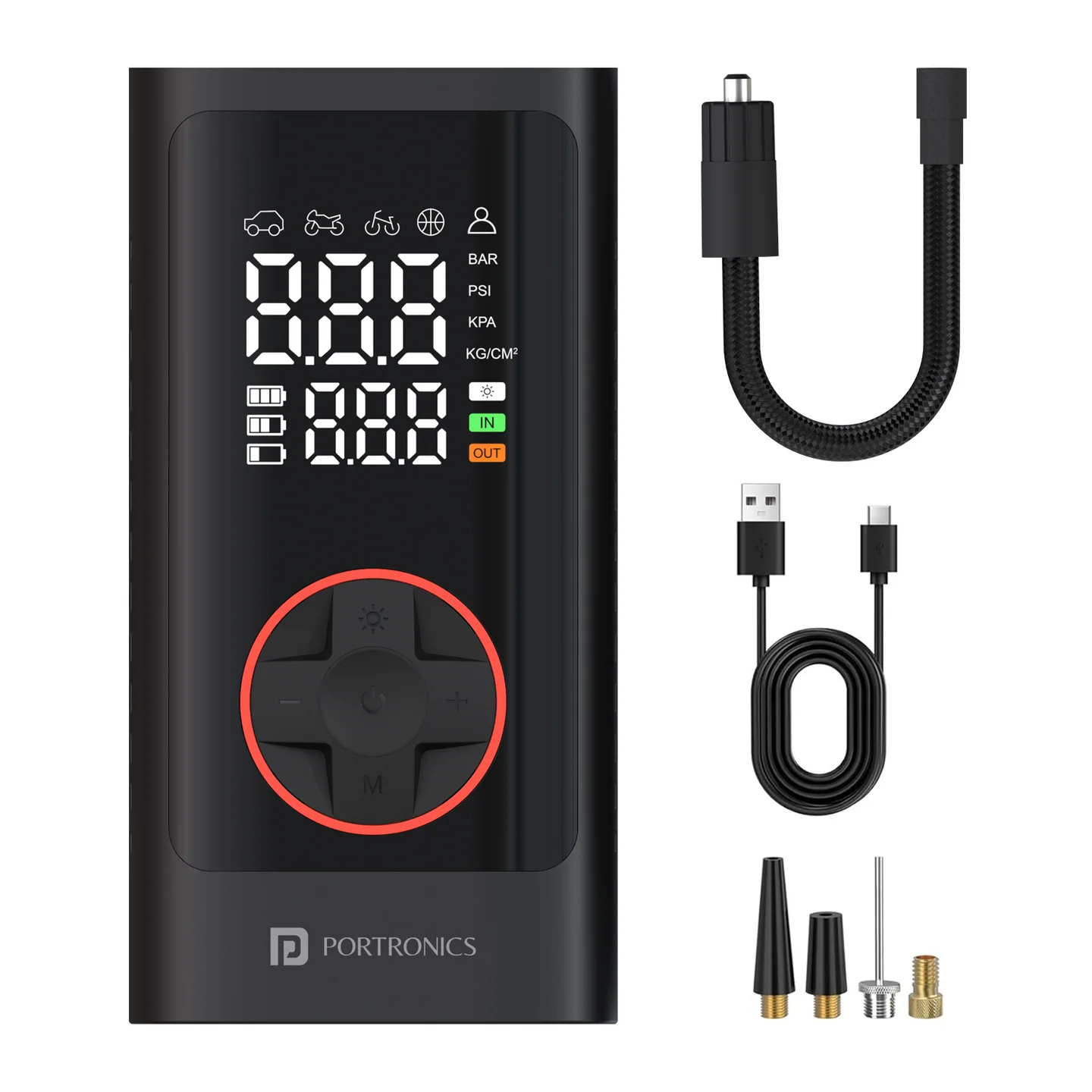

2. Package Contents / Accessories

• Vayu 7.0 Tyre Inflator
• USB Charging Cord
• Multifunction Nozzles

3. Physical Overview (Layout)

• Air Hose
• Heat Resistant Hose
• Pressure Display
• Operation Button
• LED Light
• USB Charging Port
• Type-C Charging Port

4. 4 Built-in Inflation Modes

• For Sedan Car Tire
• For Motorcycle
• For Bicycles
• For Ball

5. Important Notes

• Please keep this product away from children.
• Avoid exposure of this tyre inflator to extreme temperatures, water/liquids, dust, and direct sunlight. When in use and just after, it is normal for the tyre inflator to get warm.
• Please handle the inflator and its hose carefully during and after use, as it may be hot to touch till it cools down.
• It is recommended to turn off the tyre inflator when not in use.
• To extend the life of the tyre inflator, continuous inflation of more than 10 minutes is not recommended. If usage for longer duration is unavoidable, after constant use of 10 minutes, turn off the tyre inflator and let it cool down for 30 minutes.

6. Charging the Inflator

The Portronics Vayu 7.0 is a rechargeable tyre inflator with a Type-C charging port. It takes ~ 4 hours to charge the battery completely, and it is recommended to charge to full for first-time use.

Please note: Use a charging cable (included in box) to charge the tyre inflator.

7. How to Use — Step by Step

1. Connect the air hose to the inflator.
2. Screw the air hose to the tire valve.
3. Press and hold for 3 seconds to turn on the power switch.
4. Press the power button ("⏻") shortly to wake up the screen or start inflating.
5. Press the "M" button to change between the 4 different modes (Car / Motorcycle / Bicycle / Ball).
6. Long press "M" for three seconds to change the pressure unit.
7. You can press "+" or "–" to increase or decrease the target pressure.
8. Short press the power button ("⏻") to start inflating.
9. When the real pressure reaches the target pressure, it will stop automatically. You can also stop inflating at any time by pressing the power button. Make sure to turn off the power switch after use.

8. Pressure Pre-Set

Long press the "M" button to change the pressure unit. Press "+" or "–" to increase or decrease the target pressure. After the numbers stop flashing, press the power button ("⏻") to start inflation. When it reaches the desired pressure, it will stop automatically.

Display & Control Layout:

9. Battery Display

The digital display screen has three battery modes:

10. Warranty Note

Any damage caused by physical impact, water/liquid, fire, etc. caused by the customer or nature shall not be covered under warranty. Only product design, feature, and functionality-related faults can be considered. During the warranty period, this product is only eligible for replacement and not eligible for repair, as per the brand's discretion.

11. Still Facing Issues?

If the issue persists after performing all troubleshooting steps, please raise a support request.

Our support team will assist you further.
