Portronics Toad 5 Complete Guide

TABLE OF CONTENTS

• 1. Product Overview
• Section A: Connecting via 2.4 GHz USB Receiver
• Section B: Connecting via Bluetooth
• Section C: Charging the Mouse
• Section D: RGB Light Operation
• Section E: Additional Functions
• Section F: Troubleshooting Guide
• Still Facing Issues?

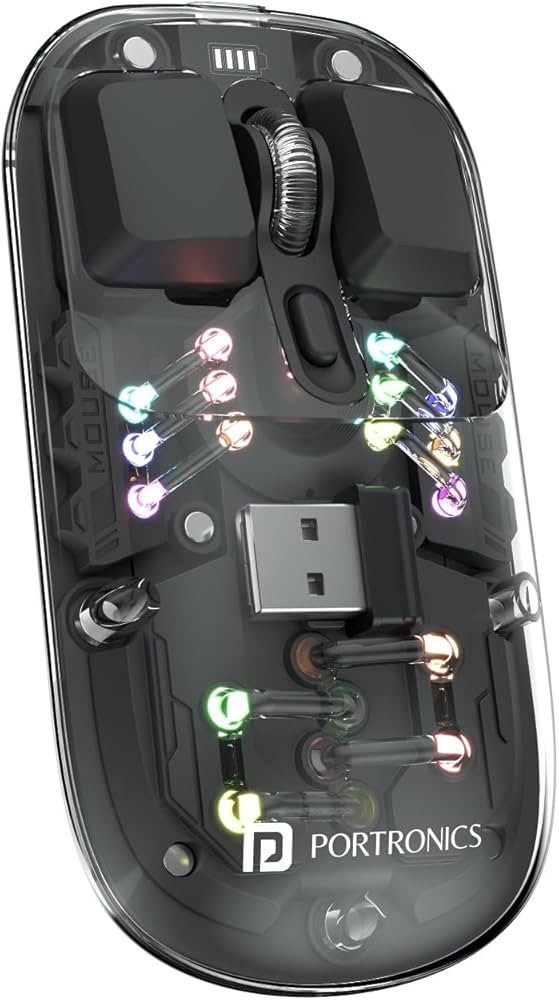

1. Product Overview

Model: Portronics Toad 5
Type: Rechargeable Wireless Mouse

Connectivity Modes:

• 2.4 GHz USB Receiver
• Bluetooth 5.3 (Multi-device support)

Charging Port:

• USB Type-C

Power Source:

• Rechargeable Battery

Additional Features:

• Transparent design with RGB lighting
• Adjustable DPI (800 / 1000 / 1200 / 1600)
• Supports connection with up to 3 devices
• Silent click buttons

Section A: Connecting via 2.4 GHz USB Receiver

Step 1: Turn ON the Mouse

• Switch ON the mouse using the power button

Step 2: Insert USB Receiver

• Remove the USB receiver (stored inside the mouse)
• Insert it into your laptop/PC

Step 3: Automatic Connection

• The mouse will connect automatically
• No manual pairing required

Step 4: Connection Confirmation

• The cursor will start responding immediately

If not working:

• Reinsert the USB receiver
• Try another USB port
• Ensure the mouse is ON

Section B: Connecting via Bluetooth

Step 1: Turn ON the Mouse

• Switch ON the mouse

Step 2: Select Bluetooth Mode

• Press the mode button to switch between:
  • Toad 5 → Green Indicator
  • Toad 5 Plus → Blue Indicator

Step 3: Enter Pairing Mode

• Press and hold the mode button
• LED will blink rapidly indicating pairing mode

Step 4: Connect Device

For Windows:
Settings → Bluetooth & Devices → Add Device → Select Toad 5 / Toad 5 Plus → Connect

For macOS:
System Settings → Bluetooth → Select Toad 5 / Toad 5 Plus → Connect

Step 5: Connection Confirmation

• LED stops blinking
• Mouse starts working normally

Section C: Charging the Mouse

How to Charge

• Connect the mouse using the USB Type-C cable
• Plug into a USB power source

Charging Notes

• Fully charge before first use
• LED indicates charging status

Section D: RGB Light Operation

• The mouse features dynamic RGB lighting effects
• RGB lights automatically cycle through colors
• Enhances visibility and aesthetics

Section E: Additional Functions

DPI Adjustment

• Press the DPI button to switch sensitivity:
  • 800 / 1000 / 1200 / 1600 DPI

Multi-Device Switching

• Supports connection with up to 3 devices
• Switch between devices using the mode button

Auto Sleep Mode

• The mouse enters sleep mode after inactivity
• Press any button to wake it up

Section F: Troubleshooting Guide

Issue 1: Mouse Not Working

• Ensure the mouse is ON
• Charge the battery
• Restart your device

Issue 2: Not Working in USB Mode

• Check the USB receiver
• Try another USB port
• Reinsert the receiver

Issue 3: Not Appearing in Bluetooth

• Ensure pairing mode (blinking LED)
• Restart Bluetooth
• Keep the mouse closer

Issue 4: Cursor Lag or Delay

• Adjust DPI
• Clean the sensor
• Avoid glass/reflective surfaces
• Close heavy background apps

Issue 5: Frequent Disconnection

• Stay within 10-meter range
• Avoid interference
• Reconnect the device

Issue 6: Mouse Not Charging

• Use the original cable
• Try another adapter
• Check the charging port

Still Facing Issues?

If the issue persists after performing all troubleshooting steps, please Click here raise a support request.

Our support team will assist you further.
