How to connect Toad Ergo 4 using Bluetooth/USB receiver ?

Modified on Thu, 26 Mar at 12:56 PM

TABLE OF CONTENTS

Section A: Back Side Overview (Important for Connectivity)
- Key Components (Back Side)
Section B: How to Connect via 2.4 GHz USB Receiver
Section C: How to Connect via Bluetooth
Section D: Multi-Device Usage

Section A: Back Side Overview (Important for Connectivity)

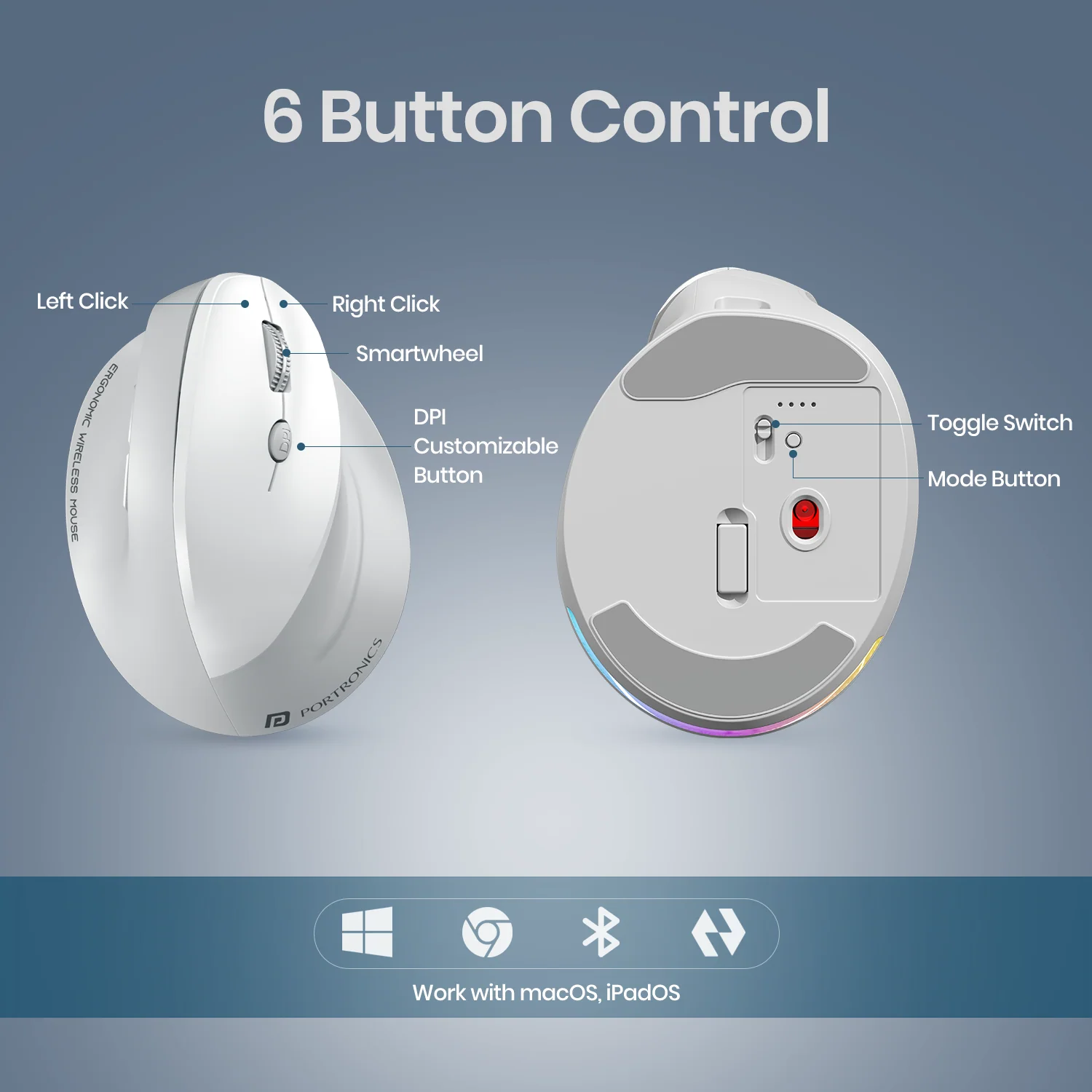

Key Components (Back Side)

Optical Sensor → Tracks movement

Power / Mode Switch→
- Bluetooth Mode
- Power OFF
- 2.4G Mode
Bluetooth / Mode Button → Pairing & switching
USB Receiver Slot → Stores dongle
Type-C Charging Port → Front side

These buttons are critical for switching between Bluetooth and USB modes.

Section B: How to Connect via 2.4 GHz USB Receiver

Step 1: Power ON the Mouse

Switch to 2.4G mode (bottom switch).
Ensure the mouse is charged.

Step 2: Insert USB Receiver

Plug the USB receiver into your laptop/PC.
The mouse will auto-connect (plug & play).

Step 3: Confirmation

Move the mouse to verify cursor movement.
If not working, try another USB port.

Section C: How to Connect via Bluetooth

Step 1: Power ON the Mouse

Switch to Bluetooth mode.

Step 2: Activate Pairing Mode

Press and hold the Bluetooth button for 2–5 seconds.
LED will blink rapidly (pairing mode).

Step 3: Enable Bluetooth on Your Device

For Windows:

Settings → Bluetooth & Devices
Turn ON → Add Device → Bluetooth
Select Portronics Toad Ergo 4 → Connect

For macOS:

System Settings → Bluetooth
Turn ON → Select Portronics Toad Ergo 4 → Connect

Step 4: Connection Confirmation

Cursor movement confirms successful pairing.

Section D: Multi-Device Usage

Supports switching between Bluetooth and 2.4G modes.
Use the mode button + switch to change devices.

Still Facing Issues?

If the issue persists after performing all troubleshooting steps, please Click here raise a support request.

Our support team will assist you further.
