1. Product Overview

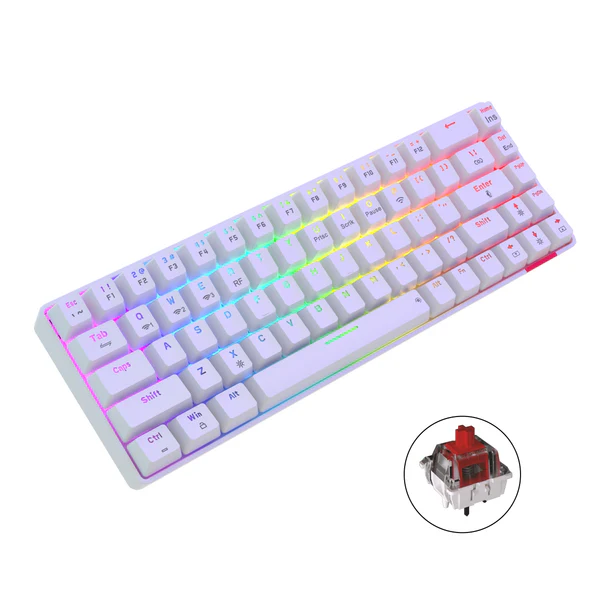

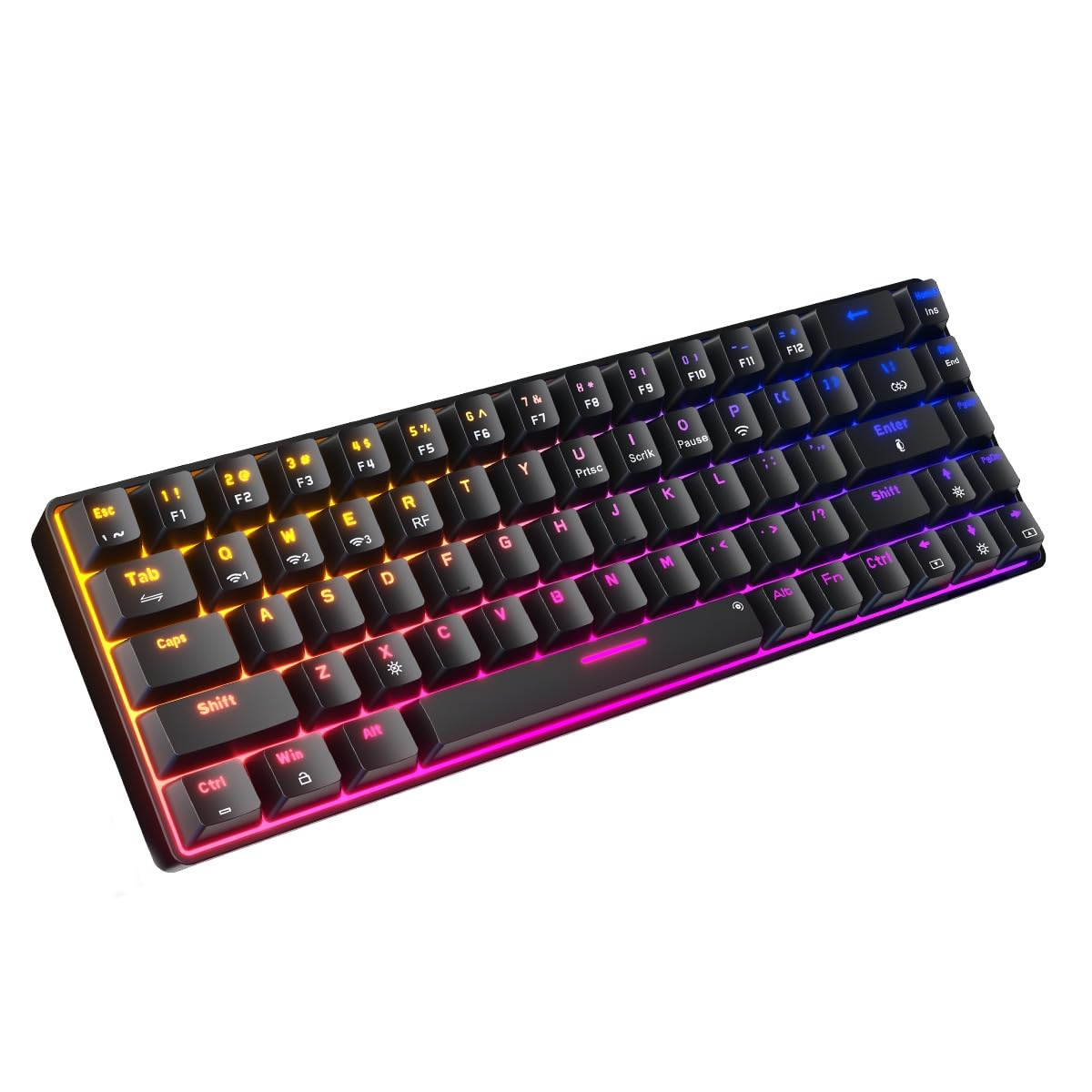

Model: Portronics Hydra 10 Gaming Keyboard

Connectivity Modes

• 2.4 GHz USB Receiver

• Bluetooth Connectivity

• Wired Connectivity

Additional Features

• RGB lighting effects

• Rechargeable wireless design

• Multi-device Bluetooth support

Section A: Connecting via 2.4 GHz USB Receiver

Step 1: Switch the Toggle Mode

Slide the toggle switch (located on the back side of the keyboard) to BT Mode to power on the keyboard.

Step 2: Insert the USB Receiver

Insert the USB receiver (dongle) into the USB port of your laptop or desktop.

Step 3: Connect Using RF Key

Press Fn + R (where RF is indicated on the keyboard).

The keyboard will automatically connect via the 2.4 GHz USB receiver.

Step 4: Confirmation

Once connected, the keyboard will start responding normally while typing.

Section B: Connecting via Bluetooth

Step 1: Switch the Toggle to BT Mode

Slide the toggle switch to BT Mode.

Step 2: Select Bluetooth Channel

Use the following key combinations to select a Bluetooth device channel:

• Fn + Q → BT1 Mode

• Fn + W → BT2 Mode

• Fn + E → BT3 Mode

Step 3: Activate Pairing Mode

Press and hold the selected Bluetooth key (Fn + Q / W / E) for 3–5 seconds.

The indicator light will start blinking rapidly, indicating that the keyboard has entered Bluetooth pairing mode.

Step 4: Enable Bluetooth on Your Device

For Windows

1. Go to Settings → Bluetooth & Devices

2. Turn Bluetooth ON

3. Click Add Device → Bluetooth

4. Select Portronics Hydra 10

5. Click Connect

For macOS

1. Open System Settings → Bluetooth

2. Turn Bluetooth ON

3. Select Portronics Hydra 10

4. Click Connect

Step 5: Connection Confirmation

Once connected, the keyboard will respond while typing.

The keyboard is now ready for use.

Section C: Connecting via Wired Mode

Step 1: Switch the Toggle Mode

Slide the toggle switch (located on the back side of the keyboard) to Wired Mode.

Step 2: Connect the Cable

Use the USB cable provided with the keyboard to connect the keyboard to your device.

The keyboard will automatically establish a wired connection.

Step 3: Confirmation

Once connected, the keyboard will start responding normally while typing.

Section D: Operating RGB Lights

Change RGB Lighting Effects

Adjust RGB Brightness

Press:

Fn + ↑ / ↓

to increase or decrease the RGB brightness level.

Control RGB Lighting Movement

Press:

Fn + ← / →

to control the movement speed of the RGB lighting effects.

Section E: Troubleshooting Guide

Issue 1: Keyboard Not Connecting via USB Receiver

Recommended Checks

• Ensure the keyboard is powered ON.

• Reinsert the USB receiver properly.

• Try connecting the receiver to another USB port.

• Restart your laptop or desktop.

Issue 2: Keyboard Not Appearing in Bluetooth List

Recommended Checks

• Ensure the keyboard is in Bluetooth pairing mode (indicator light blinking).

• Turn Bluetooth OFF and ON on your device.

• Restart the keyboard and attempt pairing again.

• Ensure the keyboard has sufficient battery charge.

Issue 3: Keyboard Connected but Not Working

Recommended Checks

• Remove the keyboard from the Bluetooth device list.

• Restart your laptop or desktop.

• Reconnect the keyboard by repeating the pairing steps.

• Ensure the keyboard is not connected to another device.

Issue 4: Frequent Disconnection

Recommended Checks

• Maintain a distance of 5–8 meters from the connected device.

• Avoid wireless interference or physical obstacles.

• Fully charge the keyboard and test again.

• Remove and reconnect the keyboard from paired devices.

Issue 5: Key Response Delay

Recommended Checks

• Ensure the keyboard is within the recommended range of the device.

• Close background applications consuming high system resources.

• Check the battery level of the keyboard.

• Reconnect the keyboard if necessary.

Issue 6: RGB Lights Not Working

If the RGB lights are not functioning:

• Ensure the keyboard is powered ON.

• Check if RGB lighting is enabled using the keyboard shortcut.

• Fully charge the keyboard and test again.

Still Facing Issues?

If the issue persists after performing all troubleshooting steps, please Click here raise a support request.

Our support team will assist you further.
